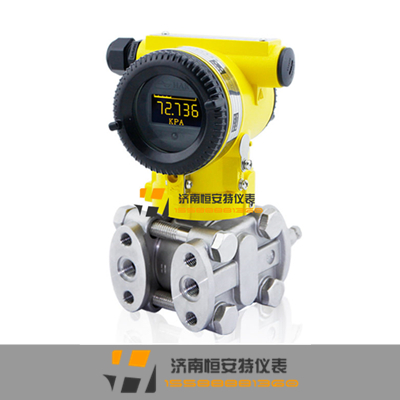

昌暉SWP-ST61DP/DR/HP/AP/GP系列差壓變送器
- SWP-ST61DP/DR/HP/AP/GP系列差壓變送器 SWP-ST61系列差壓變送器，是以微處理器為核心的現場壓力測量儀表。廣泛用于液體、氣體或蒸汽的液位、壓力的測量。 ◎精度+ -0.1%F.S. ◎量程比50:1或
-
- 全國服務熱線：
15588881360
15588881360
|
型 號
|
變送器類型
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
SWP-ST61DP
|
差壓變送器
|
●
|
-
|
-
|
-
|
-
|
|
SWP-ST61DR
|
微差壓變送器
|
-
|
●
|
-
|
-
|
-
|
|
SWP-ST61HP
|
高靜壓差壓變送器
|
-
|
-
|
●
|
-
|
-
|
|
SWP-ST61GP
|
表壓變送器
|
-
|
-
|
-
|
●
|
-
|
|
SWP-ST61AP
|
絕壓變送器
|
-
|
-
|
-
|
-
|
●
|
|
代 碼
|
測量量程（URL）
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
2
|
0.125 ~1.5 KPa
|
-
|
●
|
-
|
-
|
-
|
|
3
|
1.3 ~7.5KPa
|
●
|
-
|
●
|
●
|
●
|
|
4
|
6.2 ~37.4KPa
|
●
|
-
|
●
|
●
|
●
|
|
5
|
31.1 ~186.8KPa
|
●
|
-
|
●
|
●
|
●
|
|
6
|
117 ~690KPa
|
●
|
-
|
●
|
●
|
●
|
|
7
|
345 ~2068KPa
|
●
|
-
|
●
|
●
|
●
|
|
8
|
1170 ~6890KPa
|
●
|
-
|
-
|
●
|
●
|
|
9
|
3480 ~20680KPa
|
-
|
-
|
-
|
●
|
-
|
|
0
|
6890 ~41370KPa
|
-
|
-
|
-
|
●
|
-
|
|
T
|
特殊定制
|
●
|
●
|
●
|
●
|
●
|
|
代 碼
|
輸出方式
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
N
|
4-20mA
|
●
|
●
|
●
|
●
|
●
|
|
S
|
4-mA 帶數字通訊（HART協議）
|
●
|
●
|
●
|
●
|
●
|
|
代 碼
|
結構材料
法蘭/接頭 排液/排氣 閥膜片
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
22
|
316不銹鋼 316不銹鋼 316L不銹鋼
|
●
|
●
|
●
|
●
|
●
|
|
23
|
316不銹鋼 316不銹鋼 哈氏合金C
|
●
|
●
|
●
|
●
|
●
|
|
24
|
316不銹鋼 316不銹鋼 蒙乃爾合金
|
●
|
●
|
●
|
●
|
●
|
|
25
|
316不銹鋼 316不銹鋼 鉭
|
●
|
●
|
●
|
●
|
●
|
|
33
|
哈氏合金C 哈氏合金C 哈氏合金C
|
●
|
●
|
●
|
●
|
●
|
|
35
|
哈氏合金C 哈氏合金C 鉭
|
●
|
●
|
●
|
●
|
●
|
|
44
|
蒙乃爾合金 蒙乃爾合金 蒙乃爾合金
|
●
|
●
|
●
|
●
|
●
|
|
代 碼
|
顯示表頭（不選擇不填）
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
M3
|
OLED顯示器
|
●
|
●
|
●
|
●
|
●
|
|
代 碼
|
安裝支架
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
B1
|
管裝彎支架（管外徑Φ50~60）
|
●
|
●
|
●
|
●
|
●
|
|
B2
|
板裝彎支架
|
●
|
●
|
●
|
●
|
●
|
|
B3
|
管裝平支架（管外徑Φ50~60）
|
●
|
●
|
●
|
●
|
●
|
|
代 碼
|
泄放閥
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
D0
|
背面泄放閥
|
●
|
●
|
●
|
●
|
●
|
|
D1
|
側面泄放閥在壓力室上部
|
●
|
●
|
●
|
●
|
●
|
|
D2
|
側面泄放閥在壓力室下部
|
●
|
●
|
●
|
●
|
●
|
|
代 碼
|
低壓側法蘭適配器
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
N
|
無法蘭適配器（法蘭上由1/4NPT陰螺紋供引壓連接）
|
●
|
●
|
●
|
●
|
●
|
|
C1
|
1/2NPT陰螺紋法蘭適配器,引壓過渡接頭及焊接引壓管（不銹鋼）
|
●
|
●
|
●
|
●
|
●
|
|
C2
|
M20×1.5陽螺紋法蘭適配器,引壓過渡接頭及焊接引壓管（不銹鋼）
|
●
|
●
|
●
|
●
|
●
|
|
代 碼
|
防爆類型
|
DP
|
DR
|
HP
|
GP
|
AP
|
|
d
|
隔爆型,防爆等級Exd II CT6
|
●
|
●
|
●
|
●
|
●
|
|
典型型號
|
SWP-ST61DP 4 S 22 M3 B3 D2 C2d
|
|
|
|
|
|
-=不提供 ●=提供
注：最小量程URL/15
